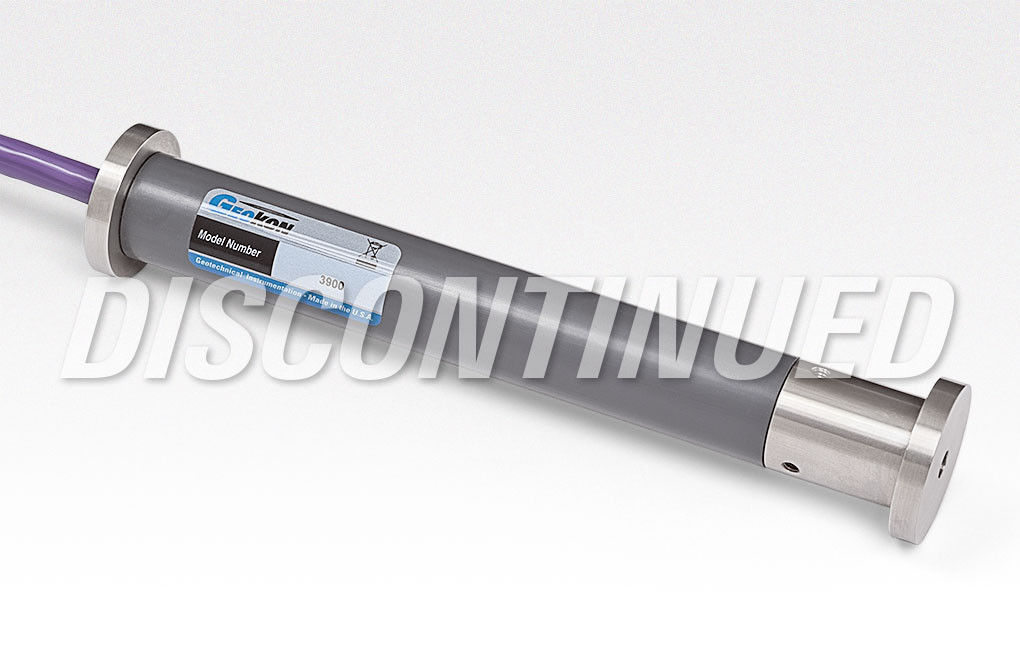

Model 3900 Embedment Strain Gage.
  • Model 3900 Embedment Strain Gage.
SKU:
Model 3900

The Model 3900 Embedment Strain Gauge is designed for the measurement of dynamic strains in concrete structures, earth fills and soils. It comprises a full bridge strain gauged proving ring coupled, between two flanges, with a spring and shaft. When the flanges move relative to one another, the tension in the spring changes and hence the strain in the proving ring. A PVC tube serves as a protective housing and holds the gauge at the desired initial tension.

Specifications

Standard Range
5000 µε
Resolution
0.025% F.S.
Accuracy¹
±0.25% F.S.
Nonlinearity
<1.0% F.S.
Temperature Range²
−20°C to +80°C
Active Gauge Length³
203 mm

¹Accuracy established under laboratory conditions.

²Other ranges available on request.

³Other lengths available on request.

Compatible Readouts and Dataloggers

Custom Strain Gauge Designs

GEOKON offers a variety of Custom Strain Gauge options and members of our experienced staff will help with the modifications necessary to meet your specific requirements. To learn more, please visit:


Please Note: GEOKON maintains an ongoing policy of design review and reserves the right to amend products and specifications without notice. Various instruments are discontinued over time and replaced with new, updated models.
