Arc Weldable (VW) | Model 4000

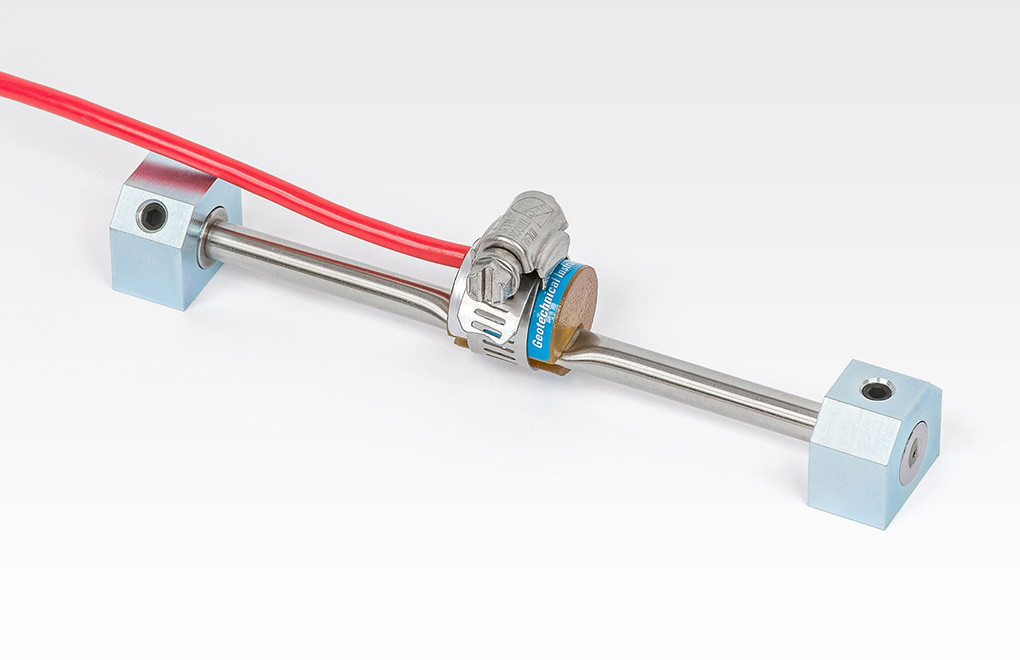

Model 4000 Arc Weldable Vibrating Wire Strain Gauge.
  • Model 4000 Arc Weldable Vibrating Wire Strain Gauge.
  • Model 4000-8 Welding Jig and Spacer Bar installation tools (used during strain gauge installation).
  • Model 4000-5 Concrete Mounting Blocks (optional).
  • Model 4000-6 Galvanized Steel Cover Plate (optional).
  • Model 4050 Arc Weldable Vibrating Wire Strain Gauge, with a 12" active gauge length.
  • Model 4000 and Model 4000-5 concrete mounting block dimensions.
SKU:
Model 4000

The Model 4000 Strain Gauge is designed primarily for arc welding to steel structures such as tunnel linings, excavation bracing, piles and bridges. The standard gauge has a 150 mm gauge length (longer or shorter versions are also available), a 3000 µε range and a 1 µε sensitivity. Also available are the Model 4000-16 and 4000-17 extended range versions, which are designed for measuring large strains of up to 5,000 µε and 10,000 µε respectively. The gauge can be adapted for bonding to concrete or for bolting to steel surfaces by modification of the end blocks. The Model 4050 is a modified version of the Model 4000 that is designed for measuring strains over a longer base length.

Specifications

Standard Range
4000, 4050 | 3,000 µε
4000-16 | 5,000 µε
4000-17 | 10,000 µε
Resolution
4000, 4050 | 1.0 µε
4000-16, 4000-17 | 2.0 to 5.0 µε
Accuracy
4000, 4050 | ±0.5% F.S.¹
4000-16, 4000-17 | ±0.5% F.S.
Nonlinearity
4000, 4050 | <0.5% F.S.
4000-16, 4000-17 | ±2.5-4.0% F.S.
Temperature Range²
−20°C to +80°C
Active Gauge Length³
150 mm

¹±0.5% F.S. with standard batch calibration. ±0.1% F.S. with individual calibration. Accuracy established under laboratory conditions.

²Other ranges available on request.

³Other lengths available on request.

Compatible Readouts and Dataloggers

Custom Strain Gauge Designs

GEOKON offers a variety of Custom Strain Gauge options and members of our experienced staff will help with the modifications necessary to meet your specific requirements. To learn more, please visit:
