Strain Gauges

Concrete Embedment (VW) | Model 4200 · 4202 · 4204 · 4210

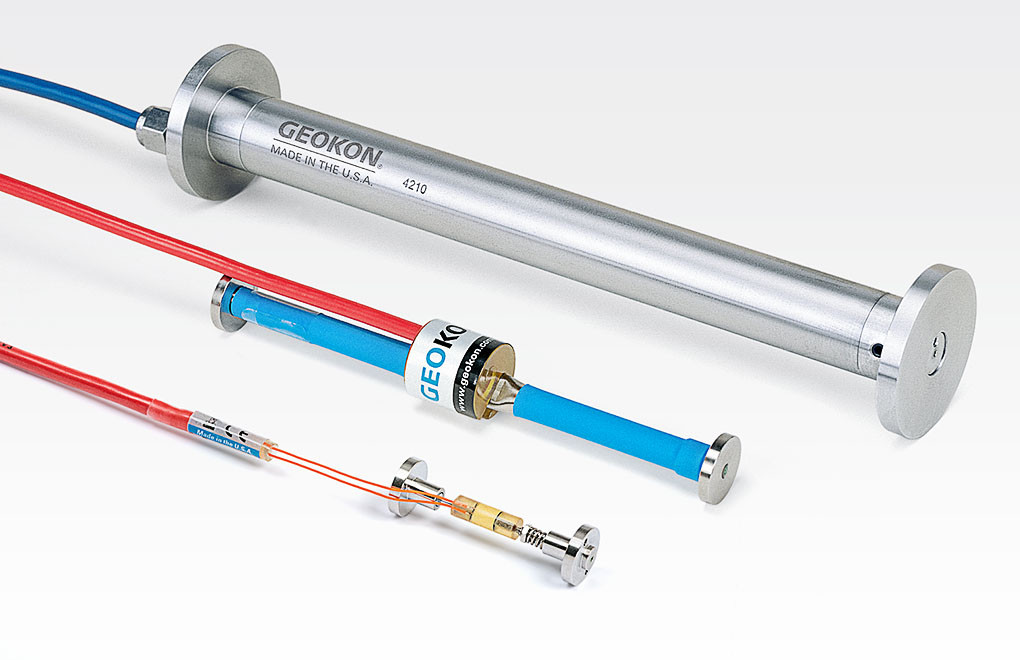

Model 4202 (front), Model 4200 (center) and Model 4210 (rear) Concrete Embedment Strain Gauges.
  • Model 4202 (front), Model 4200 (center) and Model 4210 (rear) Concrete Embedment Strain Gauges.
  • Model 4200 Concrete Embedment Strain Gauge.
  • Model 4200 Strain Gauge mounted to reinforcing bar using Model 4200-SPACER brackets.
  • Model 4200L (low modulus version) Concrete Embedment Strain Gauge.
  • Model 4200ER (5,000 με extended range version) Concrete Embedment Strain Gauge.
  • Model 4200ER (10,000 με extended range version) Concrete Embedment Strain Gauge.
  • Model 4202 Concrete Embedment Strain Gauge.
  • Model 4210 Concrete Embedment Strain Gauge.
  • Dimensions of the 4200 Series Strain Gauges.
  • Various configuration options for the Model 4210 Concrete Embedment Strain Gage.
SKU:
Model 4200 · 4202 · 4204 · 4210

These Strain Gauges are designed for direct embedment in concrete. The Model 4200 (standard) has a 153 mm gauge length and 1 με sensitivity and is commonly used for strain measurements in foundations, piles, bridges, dams, tunnel linings, etc. The Model 4200-6 and 4200-7 are extended range versions designed for measuring large strains of up to 5,000 and 10,000 με respectively. The Model 4200L (low modulus version) is particularily suitable for measuring curing strains in concrete. High temperature versions are also available. The Model 4210 has a 250 mm gauge length making it particularly suitable for use in large aggregate concrete. The Model 4202 and 4204 are designed for laboratory use and/or where there are space limitations.

Specifications

Standard Range¹
4200, 4200L, 4202, 4204, 4210 | 3,000 µε
4200-6 | 5,000 µε
4200-7 | 10,000 µε
Resolution
4200, 4200L, 4204 | 1.0 µε
4200-6, 4200-7 | 2.0-5.0 µε
4202, 4210 | 0.4 µε
Accuracy²
4200, 4200L, 4202, 4204, 4210 | ±0.5% F.S.³
4200-6, 4200-7 | ±0.5% F.S.
Nonlinearity
4200, 4200L, 4202, 4204, 4210 | <0.5% F.S.
4200-6, 4200-7 | ±2.5-4.0% F.S.
Temperature Range¹
−20°C to +80°C
Active Gauge Length
4200, 4200-6, 4200-7, 4200L | 153 mm
4202 | 51 mm
4204 | 102 mm
4210 | 254 mm⁴

¹Other ranges available on request.

²Transducer accuracy established under laboratory conditions.

³±0.5% F.S. with standard batch calibration. ±0.1% F.S. with individual calibration.

⁴Other lengths available on request.

Compatible Readouts and Dataloggers

Custom Strain Gauge Designs

GEOKON offers a variety of Custom Strain Gauge options and members of our experienced staff will help with the modifications necessary to meet your specific requirements. To learn more, please visit:


Please Note: GEOKON maintains an ongoing policy of design review and reserves the right to amend products and specifications without notice. Various instruments are discontinued over time and replaced with new, updated models.
