Pressure Cells

Standard Type (VW) | Model 4800

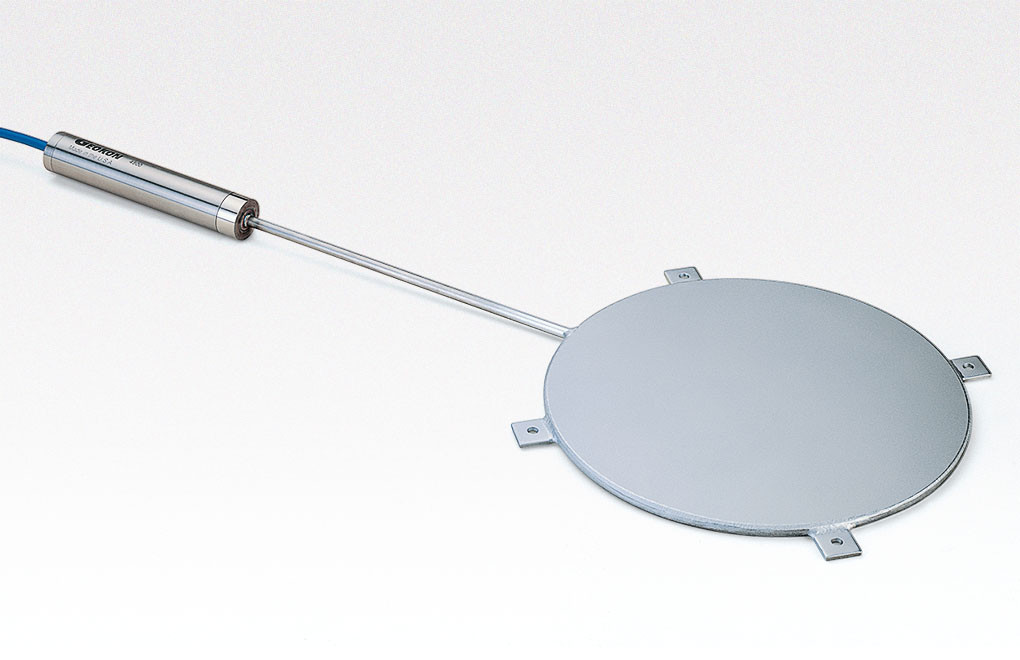

Model 4800 Standard Pressure Cell.
  • Model 4800 Standard Pressure Cell.
SKU:
Model 4800

The Model 4800 Earth Pressure Cells* are designed to measure total pressure in earth fills and embankments. All cells consist of two circular stainless steel plates welded together around their periphery and spaced apart by a narrow cavity filled with de-aired oil. Changing earth pressure squeezes the two plates together causing a corresponding increase of fluid pressure inside the cell. A vibrating wire pressure transducer converts this pressure into an electrical signal which is transmitted to the readout location.

Specifications

Standard Ranges¹
70, 170, 350, 700 kPa; 1, 2, 3, 5, 7.5, 20 MPa
Over Range
1.5 × rated pressure
Resolution
0.025% F.S.
Accuracy²
±0.1% F.S.
Temperature Range¹
−20°C to +80°C
Height × Diameter¹
6 × 230 mm

¹Other ranges and sizes available on request.

²Transducer accuracy established under laboratory conditions.
Total system accuracy (pressure transducer + pressure cell) is subject to site-specific variables.

*Please Note: Models are also available (3500 Series) with semiconductor pressure transducers to enable measurement of dynamic pressures (please contact GEOKON for details).

Compatible Readouts and Dataloggers

Custom Pressure Cell Designs

GEOKON offers a variety of Custom Pressure Cell options and members of our experienced staff will help with the modifications necessary to meet your specific requirements. To learn more, please visit:


Please Note: GEOKON maintains an ongoing policy of design review and reserves the right to amend products and specifications without notice. Various instruments are discontinued over time and replaced with new, updated models.
