Inclinometers

Inclinometer Casing | Model 6650

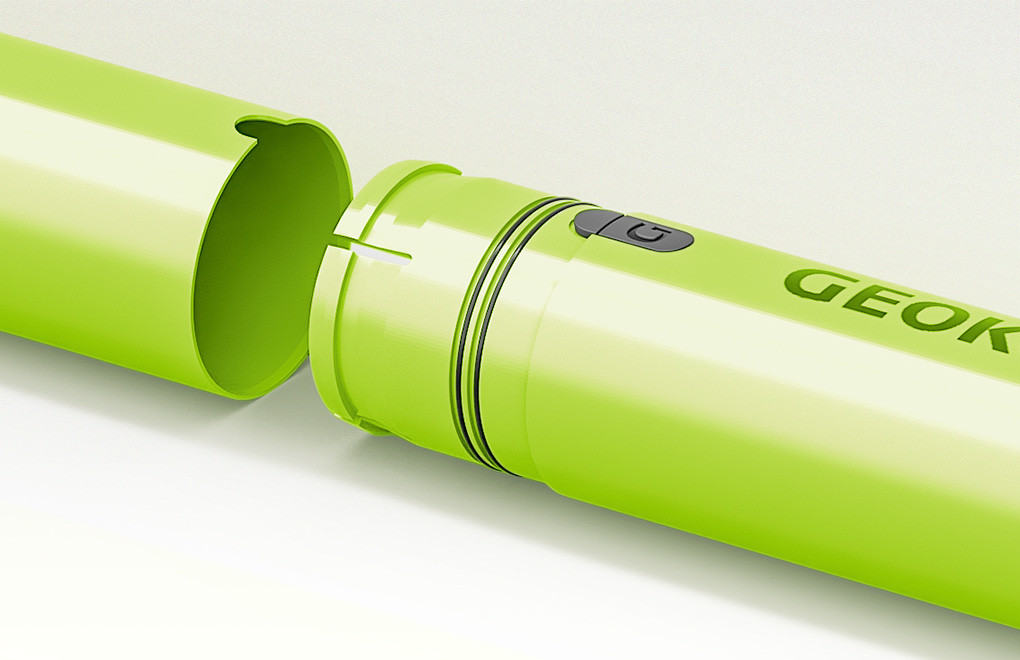

Model 6650-70MM-5 Inclinometer Casing (1.5 m length), shown with proper alignment, using alignment tab, prior to connection.
  • Model 6650-70MM-5 Inclinometer Casing (1.5 m length), shown with proper alignment, using alignment tab, prior to connection.
  • Model 6650-70MM-TS Telescoping Section, shown collapsed and fully extended.
  • Model 6650-70MM-ANC Bottom Anchor, shown collapsed and deployed.
  • Model 6650-70MM-GC Grout Cap.
  • Model 6650-70MM-TC Top Cap (left) and Model Model 6650-70MM-BC Bottom Cap (right).
SKU:
Model 6650

Model 6650 Inclinometer Casing is used in conjunction with inclinometer probes or in-place inclinometers to accurately monitor the stability of embankments, slopes, rock cuts, foundation and excavation walls, piles, and other structures. Featuring an innovative quick-connection coupling, with a dual O-Ring seal, the Model 6650 casing is designed for easy, rapid assembly in harsh environments.

Specifications

Casing O.D.
70 mm
Casing I.D.
59 mm
Length
1.5 or 3 m
Internal Grooves
4 @ 90°
Telescoping Section
662 mm (extended length)
497 mm (compressed length)

Please Note: GEOKON maintains an ongoing policy of design review and reserves the right to amend products and specifications without notice. Various instruments are discontinued over time and replaced with new, updated models.
