Dataloggers

8600 Series Dataloggers | Model 8600 Series

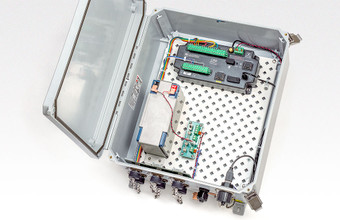

The Model 8600-1 Datalogger.
  • The Model 8600-1 Datalogger.
  • Model 8600-1 Datalogger (right) and the Model 8032 16 Channel Multiplexer (left).
  • The Model 8600-2 Datalogger, which incorporates an integral Model 8032 Multiplexer for reading 16 vibrating wire sensors and 16 thermistors or up to 32 two-wire sensors.
  • Model 8600-3 Wireless Datalogger installation, shown with the Model A-3 Extensometer in manhole, with manhole lid antenna.
SKU:
Model 8600 Series

The Model 8600 Series Dataloggers are designed around the Campbell Scientific, Inc. (CSI) Model CR6 Measurement and Control System. Although primarily manufactured for use with vibrating wire sensors and thermistors, the Model 8600 Series can be configured, at the GEOKON factory, to read MEMS sensors, Carlson type sensors, voltage type sensors, 4-20 ma sensors, and numerous other specialty sensor types. The Model 8600-1 and 8600-2 Dataloggers are housed in a NEMA 4X fiberglass reinforced polyester enclosure, designed for use in harsh environments with wide temperature tolerance, resistance to moisture and humidity and protection against lightning damage. The Model 8600-3 Datalogger is housed in a rugged, water-resistant PVC enclosure (stainless steel and fully waterproof enclosures are also available) together with a battery pack (for unattended operation) and an integral Spread Spectrum Radio (for wireless data transmission).

In addition, Solar Panels of various wattages are available for use with the 8600 Series.

Specifications

Accuracy
±(0.04% of reading + 2 microvolts), 0-40°C (analog);
±0.013% of reading (vibrating wire)
Resolution
50 µV (±200 mV range, differential measurement,
input reversal, 5 Hz fN1) (analog);
0.001 Hz RMS (frequency)
Temperature Range
−40°C to +70°C
Battery
8600-1/2 | 12 V, 7 Ah Gel Cell
8600-3 | 4 × D-cell (Li 8.5 Ah)
L × W × H¹
8600-1 | 392 × 352 × 161 mm
8600-2 | 502 × 461 × 263 mm
8600-3 | please consult GEOKON

¹Does not include mounting feet.

Custom Datalogger Designs

GEOKON offers a variety of Custom Datalogger options and members of our experienced staff will help with the modifications necessary to meet your specific requirements. To learn more, please visit:


Please Note: GEOKON maintains an ongoing policy of design review and reserves the right to amend products and specifications without notice. Various instruments are discontinued over time and replaced with new, updated models.
