Tiltmeters · Pendulums

GeoNet Cellular, Wi-Fi® + Satellite Tilt Loggers | 8920 · 8930 · 8950 Series

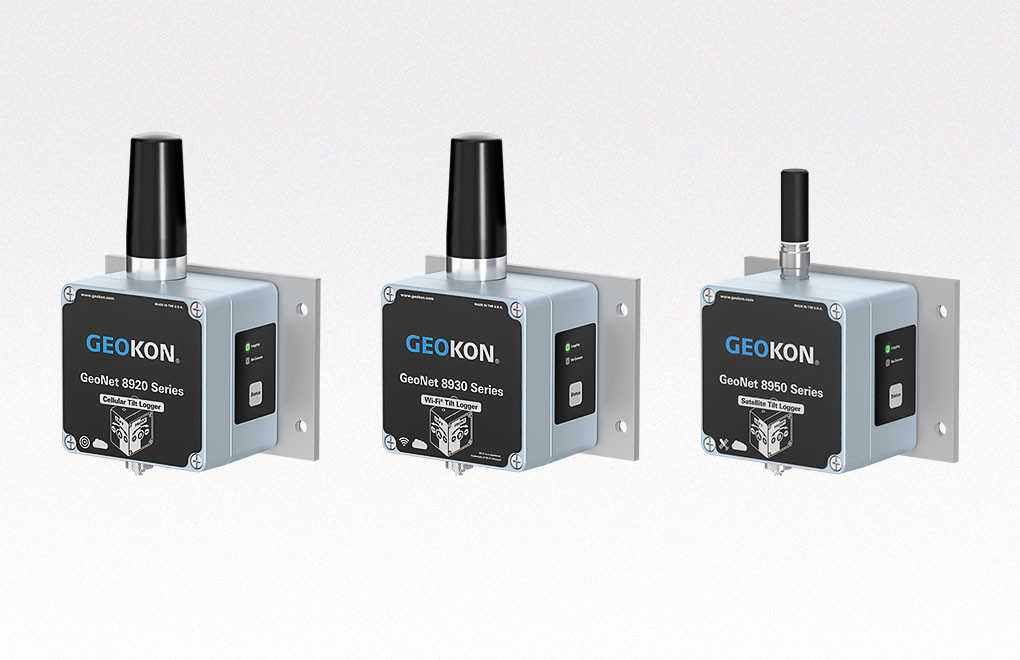

The Model 8920 Cellular (left), 8930 Wi-Fi® (center) and 8950 Satellite (right) self-contained Tilt Loggers.
  • The Model 8920 Cellular (left), 8930 Wi-Fi® (center) and 8950 Satellite (right) self-contained Tilt Loggers.
  • GEOKON Agent Software screenshot showing live data charts.
SKU:
8920 · 8930 · 8950 Series

The 8920 Series Cellular and 8950 Series Satellite Tilt Loggers are ideal for smaller networks with a limited number of sensors, high-traffic areas (i.e. areas with radio interference), dense urban environments and areas with no line-of-sight between loggers. The 8930 Series Wi-Fi Tilt Loggers are ideal for underground mines, indoor environments and on structures with a Wi-Fi network readily available.

GeoNet Cellular,¹ Wi-Fi and Satellite Tilt Loggers can be added to sites with existing GeoNet 8800 Series and/or GeoNet 8900 Series Wireless Data Hosting Systems, allowing tilt readings to be taken in locations that are beyond the range of the existing network.

Seamless and secure cloud integration is achieved with GEOKON OpenAPI. The GEOKON OpenAPI portal is easy-to-use and allows users to activate loggers, change settings, configure sensor channels, and view current logger status. Industry leading data visualization software, or the no-cost GEOKON Agent Software, can be used with GEOKON OpenAPI for data viewing and reporting.

In addition, Solar Panels of various wattages are available for use with these Tilt Loggers.

For more information about the full complement of GeoNet Cellular, Wi-Fi + Satellite Network Loggers, please see the GeoNet 8920 · 8930 · 8950 Series.

¹GeoNet Cellular Gateways are compatible with all major networks except Verizon.

Specifications

Tilt Range¹
±90°
Resolution²
0.00025° (0.004 mm/m)
Precision³
±0.0075° (±0.13 mm/m)
Data Memory
32 MB
Storage Capacity
500,000 readings
Power Supply
Mains Power or Solar
Operating Temperature
−40 °C to +65 °C (−40 °F to +149 °F)
(range varies by power source)
L × W × H
120 × 122 × 91 mm

¹Calibrated range: ±30°

²99% confidence interval (i.e. 99 out of 100 individual readings fall within this tolerance).

³99% confidence interval. Includes random walk (changes between consecutive readings that have no discernible cause) and seismic noise during testing.

Custom Tiltmeter and Pendulum Designs

GEOKON offers a variety of Custom Tiltmeter and Pendulum options and members of our experienced staff will help with the modifications necessary to meet your specific requirements. To learn more, please visit:


Please Note: GEOKON maintains an ongoing policy of design review and reserves the right to amend products and specifications without notice. Various instruments are discontinued over time and replaced with new, updated models.

Wi-Fi is a registered trademark of Wi-Fi Alliance®.All other trademarks are the property of their respective owners.
