Appendix C.Anchor Pullout Test Results

Pullout tests were conducted with the Model 1300 (A-9) anchors installed in stainless steel and PVC pipes to determine the force necessary to fail the anchors.

The results are presented in the following chart.

7:

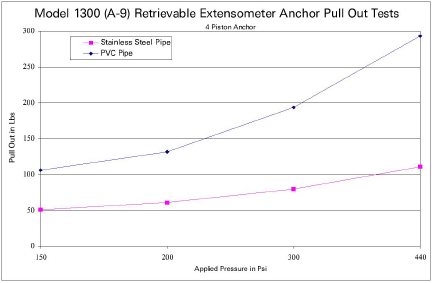

Figure 7: Anchor Pullout Test Results
