5.Model 8800-2-4B Add-On Module
Model 8800-2-4B (Ethernet compatibility) is an add-on module for the gateway to allow the end user to easily add remote communications and data download functionality.
Each module comprises a weather proof enclosure 305 x 254 x 152 mm (12" x 10" × 6") in size, a 7 amp hour rechargeable battery, a charger, and the necessary cables to interface with a GeoNet gateway.
When an add-on module is paired with a gateway, the gateway is powered by the rechargeable battery inside the module. The charge level of the battery can be monitored using the Agent software.
Modules are shipped with the batteries uninstalled and the fuse distribution board switch in the OFF position. To deploy modules, install the batteries and set the switch to the ON position. Use the provided black 10-pin to 10-pin connecting cable to connect the module to the gateway.
Install D cell batteries in the gateway and set the battery switch to the appropriate setting to ensure communication between the gateway and the loggers will not be interrupted if the battery level drops. See Section 3.2.1.
geokon sets the module to communicate with a GeoNet gateway; however, the user must finish the setup so that it works with their network. Configure an IP address by following the instructions below.
Note: The following steps should only be performed by your network administrator. NPort Administrator (on CD) should be installed and used to configure the required IP changes.
1.Connect a computer to the module via the Ethernet Port.
2.Open NPort Administrator and click Search. (By default, the MOXA 5110A IP Address 192.168.127.254 will be displayed.)
3.Double-click on the IP Address under the configuration window.
4.In the configuration window, click on the Network tab.
5.Check the boxes next to Modify IP address and Modify Netmask.
34:

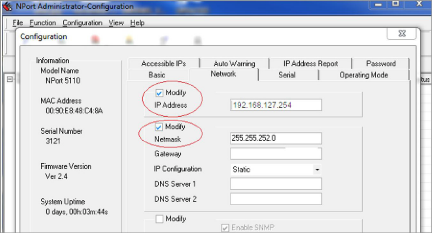

Figure 34: Nport Configuration
6.Update the IP Address, Netmask, Gateway, and DNS Server 1 fields to match your network.
Note: Do not make any other changes to the settings because it may hinder proper communications with the gateway.
35:

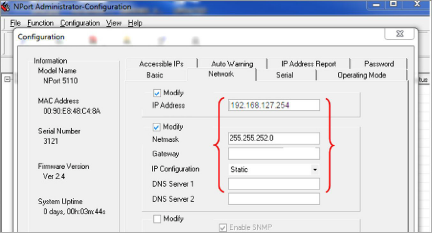

Figure 35: Update Fields
7.Click OK.
8.Use the ON/OFF switch to restart the module.
9.Connect the add-on Module to the gateway.
10.Enter the new IP address followed by :4001 in the Network Address field in Agent software.
36:

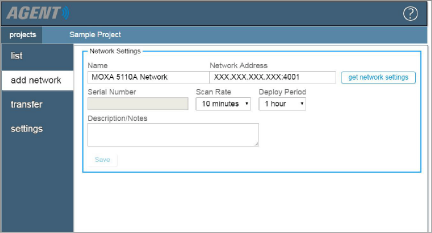

Figure 36: Enter the IP address followed by :4001
For more information on using Agent software, please refer to the Agent Software Program instruction manual, available at https://www.geokon.com.
