Appendix A.Specifications
A.1Inclinometer Specifications
Range1 |
±90° |
Resolution2 |
±0.00025° (±0.004 mm/m) |
Precision3 |
±0.0075° (±0.13 mm/m) |
Nonlinearity |
±0.005° across ±30° range (±0.09 mm/m) |
Temperature Dependent Uncertainty |
±0.019°/°C (±0.33 mm/m/°C) |
Operating Temperature |
-40 to 80 °C (-40 to 176 °F) |
Power Supply Voltage |
12 VDC ±20% |
Operating Current4 |
12 mA ±1 mA |
Standby Current4 |
2 mA ±0.1 mA |
Maximum Supply Current5 |
500 mA |
Sensor Diameter |
25.4 mm (1") |
Standard Sensor Length6 |
0.5 m, 1 m, 2 m, 3 m, 2 ft, 5 ft, 10 ft |
Sensor Weight |
0.5 m: 0.55 kg (1.22 lb), 1 m: 0.97 kg (2.14 lb), 2 m: 1.80 kg (3.98 lb), 3 m: 2.64 kg (5.82 lb), 2 ft: 0.64 kg (1.42 lb), 5 ft: 1.40 kg (3.10 lb), 10 ft: 2.67 kg (5.90 lb) |
Materials |
316 Stainless Steel, Engineered Polymer |
Electrical Cable |
Four Conductor, Foil shield, Polyurethane jacket, nominal OD = 7.9 mm |
Minimum Sensor Spacing |
0.5 m |
Interface |
RS-485 |
Protocol |
Modbus |
Baud Rate |
115,200 bps |
Temperature Accuracy |
±0.5 °C |
Ingress Protection |
IP68 to 3 MPa (300 m/1000 ft of head) |
Maximum Allowable String Weight |
113 kg (250 lb) |
Casing Diameter Range |
58 mm to 90 mm |
table 5: Model 6180 Inclinometer Specifications
Notes:
1 Calibrated Range: +/- 30°
2 99% confidence interval (i.e. 99 out of 100 individual readings fall within this tolerance)
3 Includes random walk (changes between consecutive readings that have no discernible cause) and seismic noise during testing
4 Operating and standby current are for each individual sensor drop in a string
5 Per entire string
6 Custom spacing available upon request
6180-0.5M |
IPI MEMS Addressable Vertical |
Biaxial, Segment Length = 0.5 M |
||||||||
6180-1M |
" |
" |
|
" |
" |
|
|
|
Biaxial, Segment Length = 1M |
|
6180-2M |
" |
" |
|
" |
" |
|
|
|
Biaxial, Segment Length = 2M |
|
6180-3M |
" |
" |
|
" |
" |
|
|
|
Biaxial, Segment Length = 3M |
|
6180-2FT |
" |
" |
|
" |
" |
|
|
|
Biaxial, Segment Length = 2FT |
|
6180-5FT |
" |
" |
|
" |
" |
|
|
|
Biaxial, Segment Length = 5FT |
|
6180-10FT |
" |
" |
|
" |
" |
|
|
|
Biaxial, Segment Length = 10FT |
|
6180T-0.5M |
IPI MEMS Addressable Vertical, Terminal |
Biaxial, Segment Length = 0.5M |
||||||||
6180T-1M |
" |
" |
|
" |
" |
" |
|
|
Biaxial, Segment Length = 1M |
|
6180T-2M |
" |
" |
|
" |
" |
" |
|
|
Biaxial, Segment Length = 2M |
|
6180T-3M |
" |
" |
|
" |
" |
" |
|
|
Biaxial, Segment Length = 3M |
|
6180T-2FT |
" |
" |
|
" |
" |
" |
|
|
Biaxial, Segment Length = 2FT |
|
6180T-5FT |
" |
" |
|
" |
" |
" |
|
|
Biaxial, Segment Length = 5FT |
|
6180T-10FT |
" |
" |
|
" |
" |
" |
|
|
Biaxial, Segment Length = 10FT |
|
6180-1 |
Suspension Cable Assembly |
Specify Length of 07‑125SS316 Aircraft Cable Required |
||||||||
6180-2 |
Suspension Bracket |
|
||||||||
6180-6 |
Safety Cable Assembly |
Specify Length of 07‑125SS316 Aircraft Cable Required |
||||||||
6180-3-1 |
Topside Readout Cable/Bare Leads, < 50 FT |
Specify Length of 02-313P9LTD Signal Cable Required |
||||||||
6180-3-2 |
Topside Readout Cable/Bare Leads, 50 FT‑100 FT |
Specify Length of 02-313P9LTD Signal Cable Required |
||||||||
6180-3V |
Topside Readout Cable/Bare Leads, > 100 FT |
Specify Length of 02-313P9LTD Signal Cable Required |
||||||||
07‑125SS316‑E |
Aircraft Cable, 1/8", English |
|
||||||||
07‑125SS316‑M |
Aircraft Cable, 1/8", Metric |
|
||||||||
02‑313P9LTD‑M |
Low Temp., Polyurethane Cable, 0.313", Violet |
|
table 6: Model 6180 Inclinometer Parts List
23:

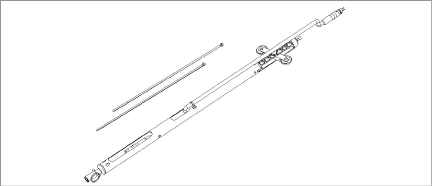

Figure 23: Model 6180-0.5M, -1M, -2M, -3M, -2FT, -5FT, -10FT
24:
Figure 24: Model 6180T-0.5M, -1M, -2M, -3M, -2FT, -5FT, -10FT
25:

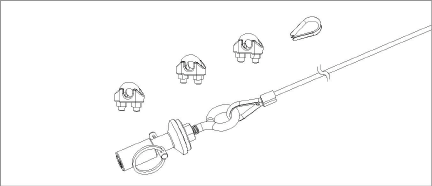

Figure 25: Model 6180-1 Suspension Cable Assembly
26:

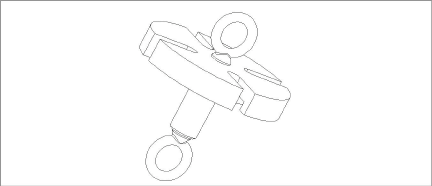

Figure 26: Model 6180-2 Suspension Bracket
27:

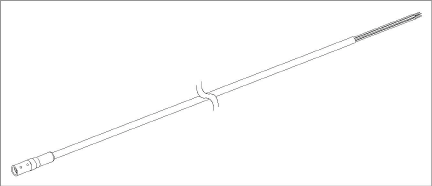

Figure 27: Model 6180-3-1, -3-2 Topside Readout Cable/Bare Leads, < 50FT
28:

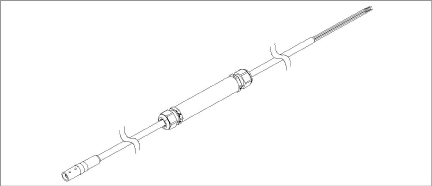

Figure 28: Model 6180-3V Topside Readout Cable/Bare Leads, > 100FT
29:

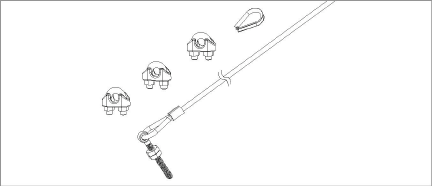

Figure 29: Model 6180-6 Safety Cable Assembly
